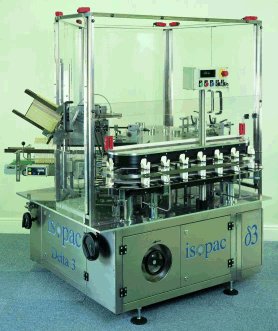

Vertical Cartoning
Machine
 |
- Unique Triangular
Machine Configuration
- Extremely Compact -
Less Than 1.5 Metres Square
- Wide Range Of Sizes
And Styles Of Carton Can Be Handled
- Balcony
Construction With Loading Area For Up To Three Operators
- Crevice And Product
Trap Free, Making Line Clearance Quick And Easy
- Totally
Mechanically Operated; All Drives Enclosed Within The
Base
- Ideally Suited For
Short Runs And Small Batches
- Simple To Move By
Means Of A Pallet Truck
- GMP
Design
|
Machine Specifications
| Mechanical Speed Per
Minute |
15-60
Strokes |
| Power
Consumption |
1.5KW 1
PH |
| Air
Consumption |
150
L/1 |
| Air Pressure |
6
Bar |
| Weight |
850
Kg |
Carton Size Range
 |
| |
A |
B |
C |
| Min |
20 |
15 |
50 |
| Max |
110 |
70 |
200 |
|
